Timken HH953749 – HH953710X

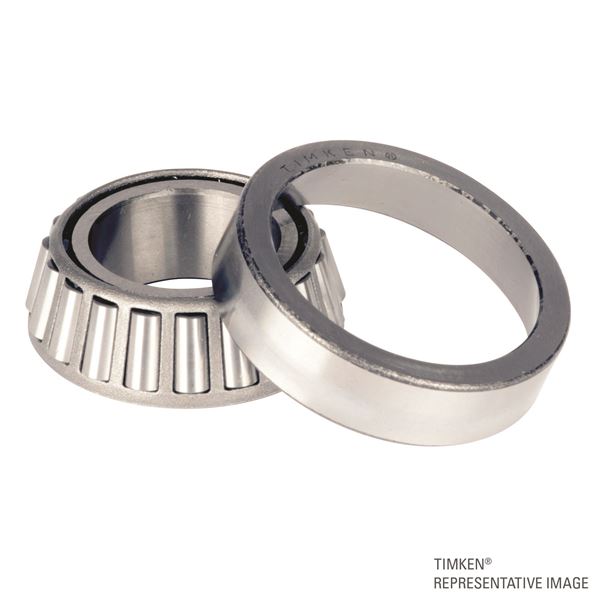

Tapered Roller Bearings-TS(Tapered Single)Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
HH953700
Cone Part Number
HH953749
Cup Part Number
HH953710X
Design Unit
Inch
Cage Material
Pin-Type
Related Assembly Number(s)
HH953749-902A3

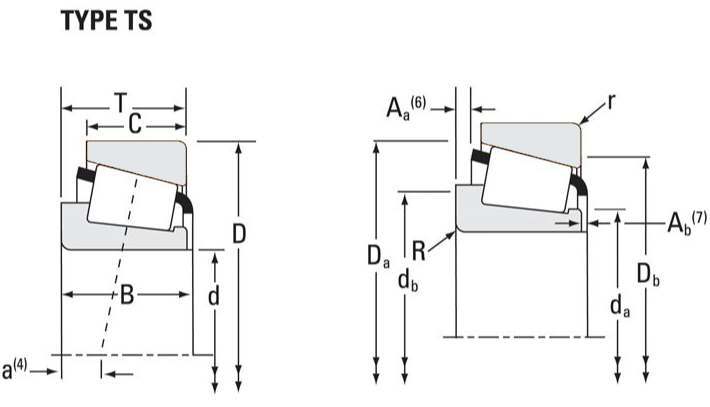

Dimensions
d - Bore
254 mm
D - Cup Outer Diameter
533.400 mm
B - Cone Width
120.650 mm
C - Cup Width
77.788 mm
T - Bearing Width
133.350 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
6.4 mm
r - Cup Backface "To Clear" Radius2
6.35 mm
da - Cone Frontface Backing Diameter
306 mm
db - Cone Backface Backing Diameter
350 mm
Da - Cup Frontface Backing Diameter
495.60 mm
Db - Cup Backface Backing Diameter
454.91 mm
Ab - Cage-Cone Frontface Clearance
18 mm
Aa - Cage-Cone Backface Clearance
21.8 mm
a - Effective Center Location3
45.5 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
696000 N
C1 - Dynamic Radial Rating (1 million revolutions)5
2680000 N
C0 - Static Radial Rating
3090000 N
C6
1120000 N
Factors
K - Factor7
0.62
e - ISO Factor8
0.94
Y - ISO Factor9
0.64
G1 - Heat Generation Factor (Roller-Raceway)
1668.7
G2 - Heat Generation Factor (Rib-Roller End)
104.2
Cg - Geometry Factor10
0.210
