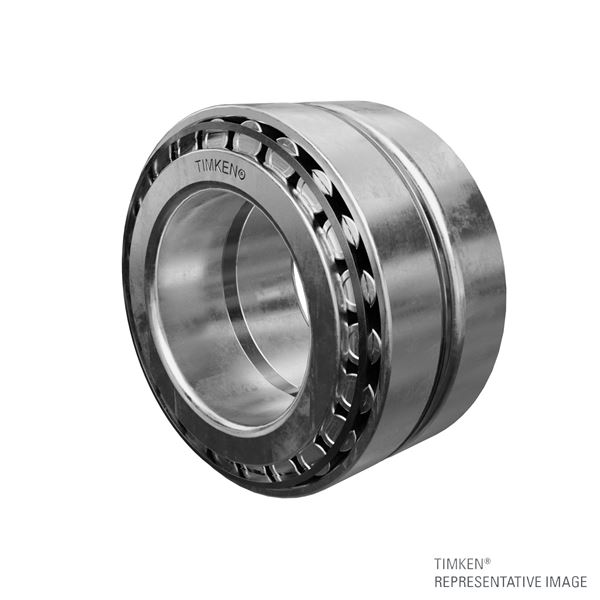

Timken HM801346 – HM801310 (HM801346XC)
Tapered Roller Bearings - 2TS-IM (Matched Bearing Assembly, Indirect Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
HM801346 – HM801310 (HM801346XC)
Specifications
Cone Part Number
HM801346
Cup Part Number
HM801310
Related Assembly Number(s)
HM801346-90015
Inner Spacer Part Number
HM801346XC
Design Unit
Inch
Dimensions
d - Bore
38.1 mm
D - Cup Outer Diameter
82.550 mm
T - Width
65.293 mm
C - Width
52.4 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
0.760 mm
r - Cup Backface "To Clear" Radius2
0.5 mm
db - Cone Backface Backing Diameter
51 mm
Da - Cup Frontface Backing Diameter
78.00 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
26600 N
C1 - Dynamic Radial Rating (1 million revolutions)4
179000 N
C5
24900 N
C906
46400 N
Factors
K - Factor7
1.07
e - ISO Factor8
0.55
Y1 - ISO Factor9
1.24
Y2 - ISO Factor10
1.84
