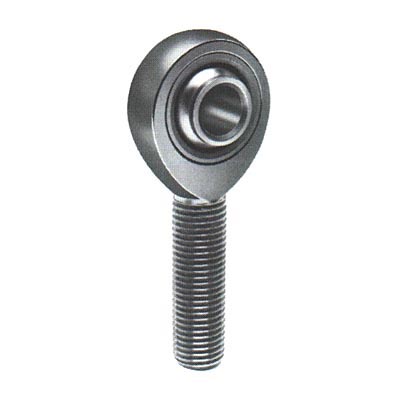

Timken HXAB-14E-10K
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
HXAB-14E-10K
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
7/8-14
Thread Class
UNJF-3A-LH
a - Misalignment Angle
18 º
Radial Clearance in.
.002 Max.
Keyway
Keyway
Ultimate Radial Static Load Capacity
35,670 lbs
Note

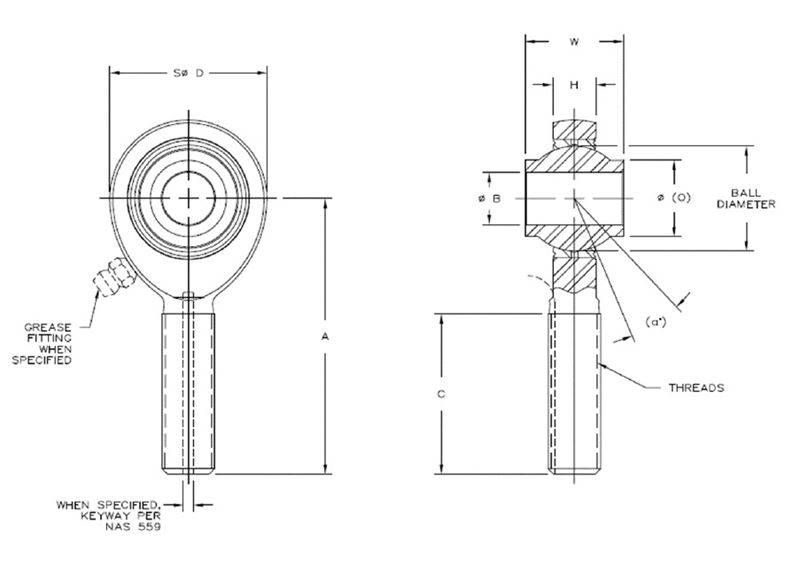

For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the View Product Catalogs" tab from the home page."
Type of Lubrication
None
