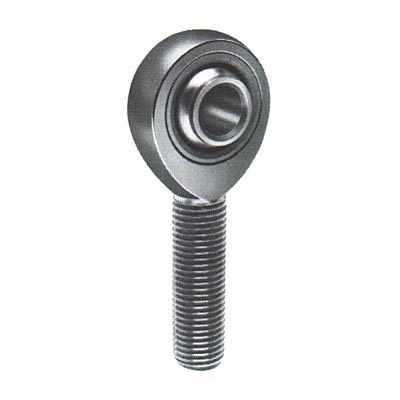

Timken HXAB-3E-11K
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

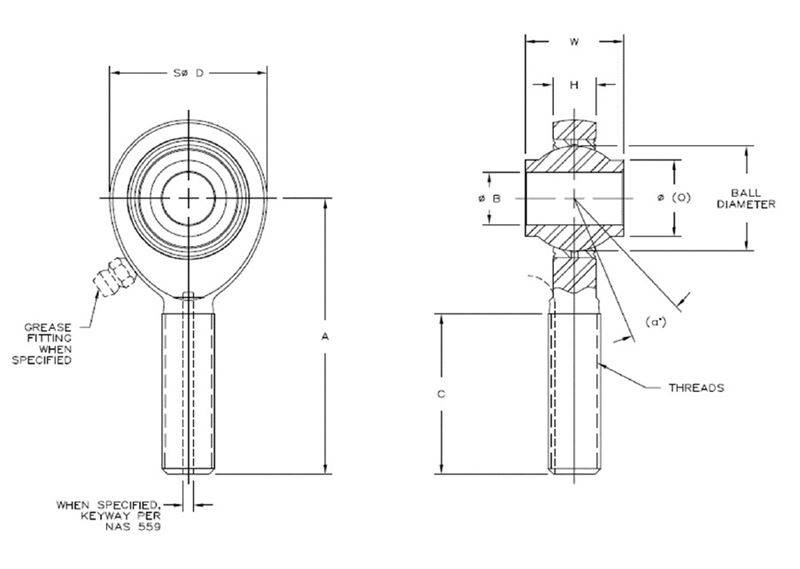

Specifications
Part Number
HXAB-3E-11K
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
5/16-24
Thread Class
UNJF-3A-LH
a - Misalignment Angle
13 º
Radial Clearance in.
.002 Max.
Keyway
Keyway
Ultimate Radial Static Load Capacity
4,854 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the View Product Catalogs" tab from the home page."
Type of Lubrication
None
