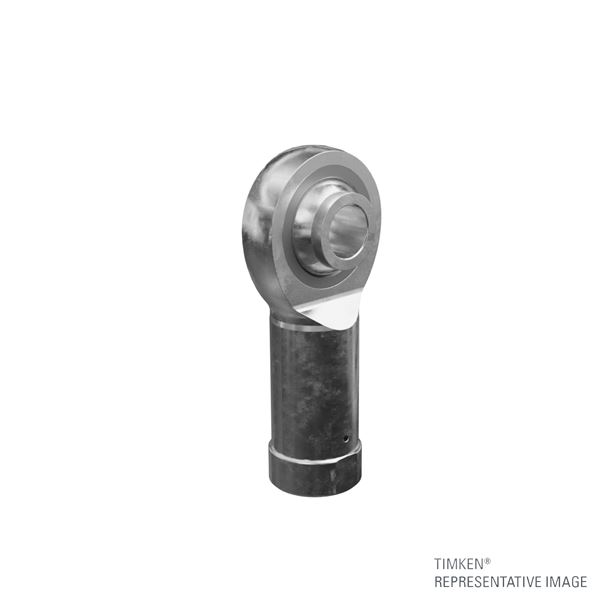

Timken HXAG-10ET-10K
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
HXAG-10ET-10K
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
5/8-18
Thread Class
UNJF-3B-LH
a - Misalignment Angle
20 º
Ultimate Radial Static Load Capacity
26,281 lbs
Note

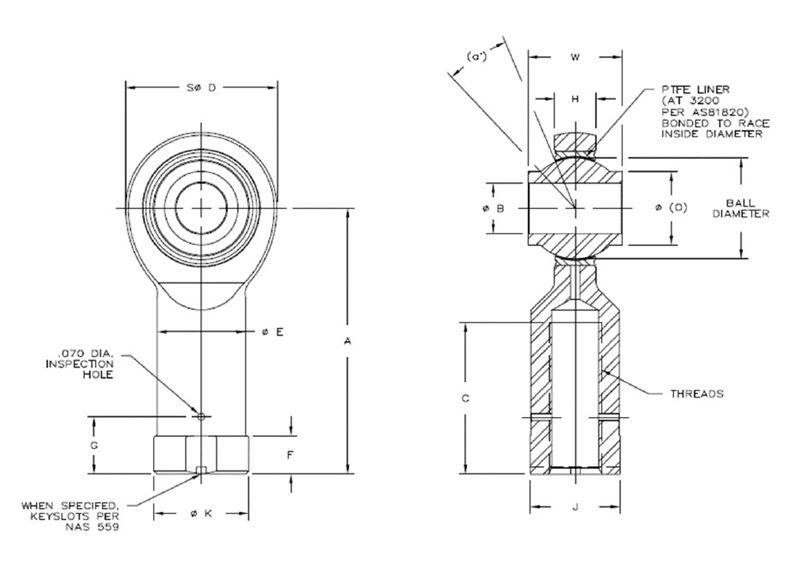

For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the "View Product Catalogs" tab from the home page.
