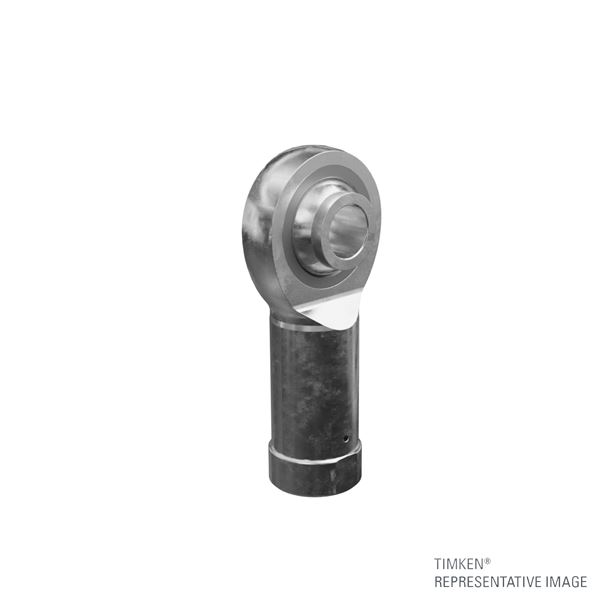

Timken HXAG-4ET-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
HXAG-4ET-10
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
5/16-24
Thread Class
UNJF-3B-LH

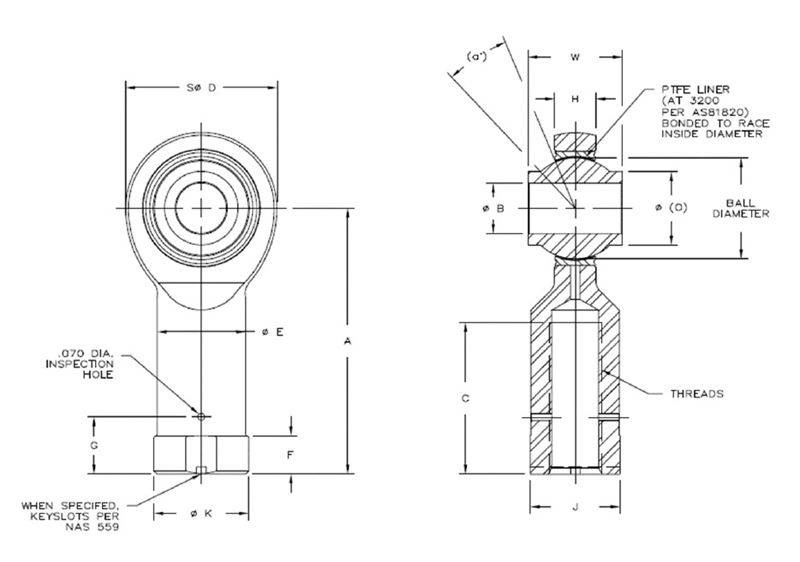

a - Misalignment Angle
23 º
Ultimate Radial Static Load Capacity
8,509 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the "View Product Catalogs" tab from the home page.
