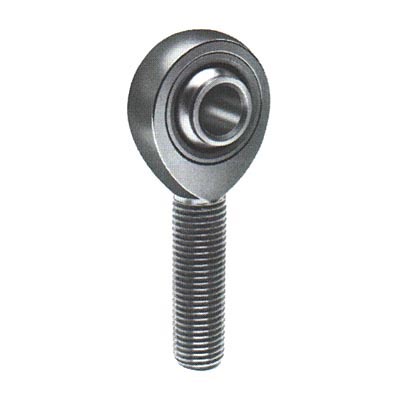

Timken HXAM-10T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
HXAM-10T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
3/4-16
Thread Class
UNJF-3A

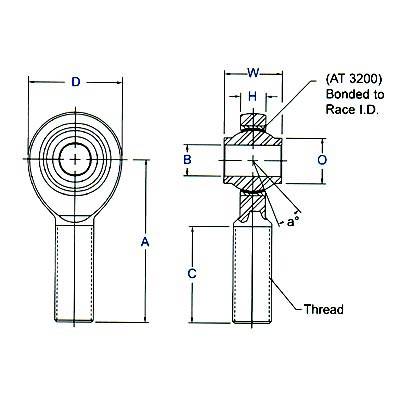

a - Misalignment Angle
19 º
Ultimate Radial Static Load Capacity
32,067 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
