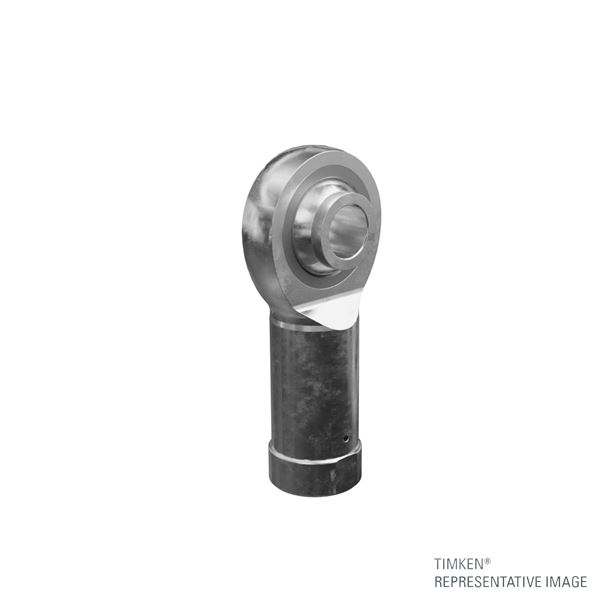

Timken HXAW-14E-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

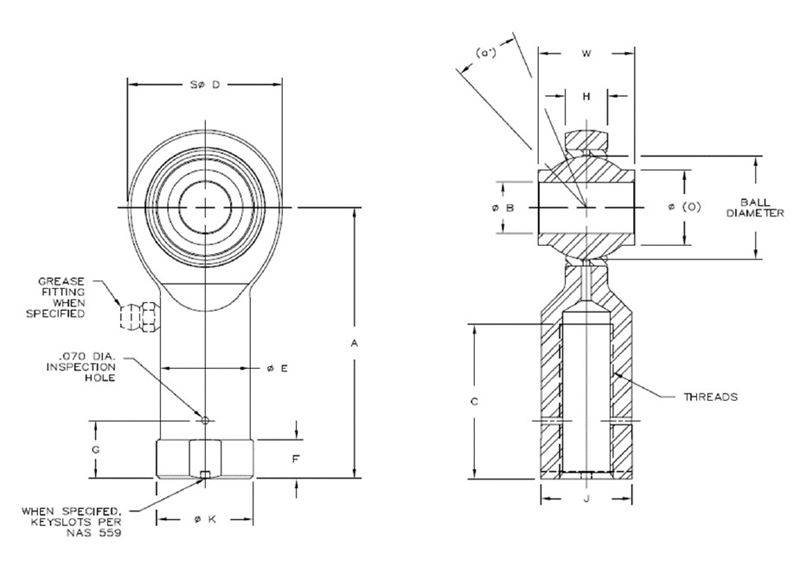

Specifications
Part Number
HXAW-14E-10
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
7/8-14
Thread Class
UNJF-3B
a - Misalignment Angle
18 º
Radial Clearance in.
.002 Max.
Ultimate Radial Static Load Capacity
35,670 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the View Product Catalogs tab from the home page.""
Type of Lubrication
None
