Timken IR-648036
Inner Ring (IR)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Max. Loose Transition Fit S
101.587 mm
Min. Loose Transition Fit S
101.567 mm
Max. Interference Fit
101.628 mm
Min. Interference Fit
101.613 mm

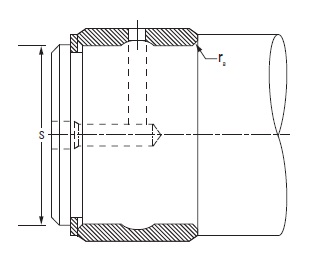

Dimensions
Dimension D
101.6 mm
Dimension F
127 mm
Dimension B
57.150 mm
Chamfer r
2.54 mm
Sub Assembly Part Numbers
Used with Bearing Designation
HJ-8010436
