Timken JHM534149 – JHM534110
Tapered Roller Bearings - TS (Tapered Single) Metric
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
HM534100
Cone Part Number
JHM534149
Cup Part Number
JHM534110
Design Unit
Metric
Cage Material
Stamped Steel
Related Assembly Number(s)
JHM534149-90B01

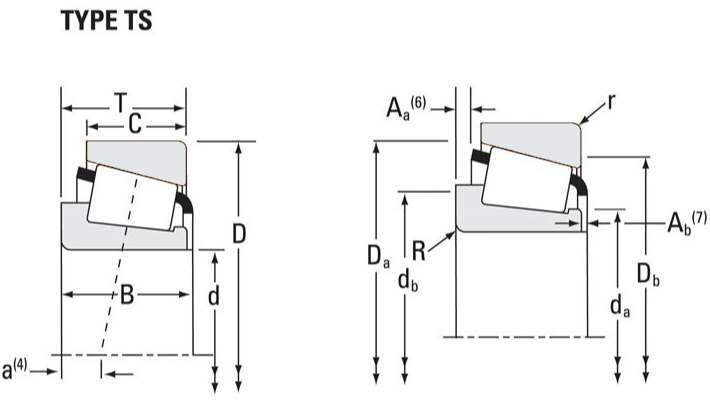

Dimensions
d - Bore
170 mm
D - Cup Outer Diameter
230 mm
B - Cone Width
38.000 mm
C - Cup Width
31.000 mm
T - Bearing Width
39.000 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
2.54 mm
da - Cone Frontface Backing Diameter
178 mm
db - Cone Backface Backing Diameter
184 mm
Da - Cup Frontface Backing Diameter
224.54 mm
Db - Cup Backface Backing Diameter
216.92 mm
Ab - Cage-Cone Frontface Clearance
4.1 mm
Aa - Cage-Cone Backface Clearance
0.5 mm
a - Effective Center Location3
4.6 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
86800 N
C1 - Dynamic Radial Rating (1 million revolutions)5
335000 N
C0 - Static Radial Rating
590000 N
C6
56900 N
Factors
K - Factor7
1.52
e - ISO Factor8
0.38
Y - ISO Factor9
1.57
G1 - Heat Generation Factor (Roller-Raceway)
480
G2 - Heat Generation Factor (Rib-Roller End)
89.8
Cg - Geometry Factor10
0.135
