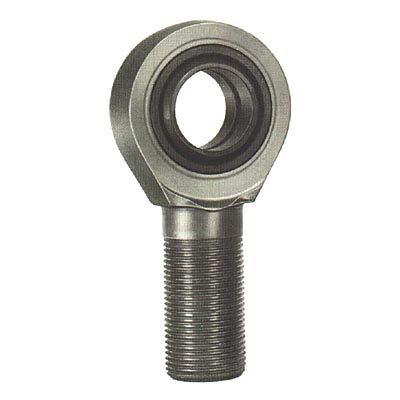

Timken KM-32F-1
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
KM-32F-1
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
2-12
Thread Class
UN-3A
a - Misalignment Angle Clevis Mounted
6 º
Ultimate Radial Static Load Capacity
153,528 lbs
Type of Lubrication
Flush Fitting
Note

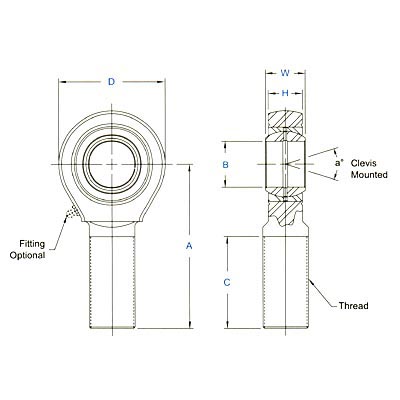

For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
