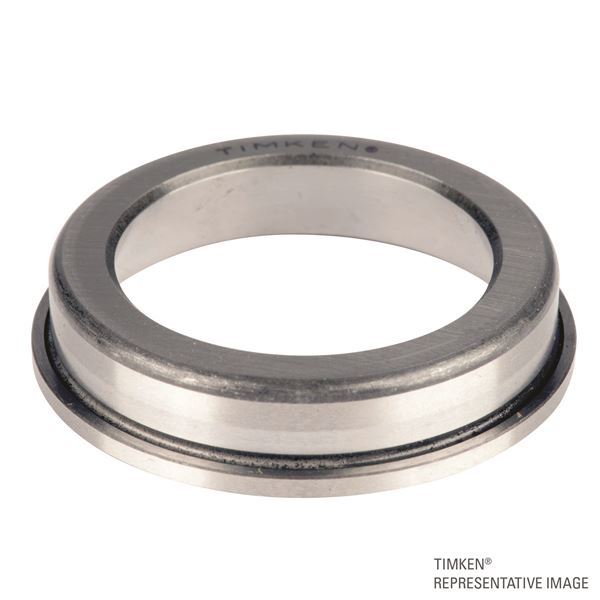

Timken LM67010-BA
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
LM67000
Cup Part Number
LM67010-BA
Design Units
Imperial

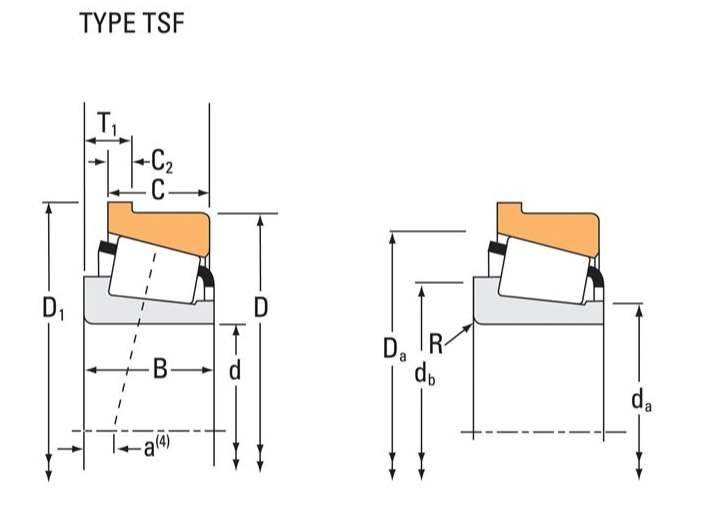

Dimensions
D - Cup Outer Diameter
58.877 mm
D1 - Flange Outer Diameter
61.722 mm
C - Cup Width
11.811 mm
C1 - Cup Flange Width
2.769 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.3 mm
Da - Cup Frontface Backing Diameter
57.40 mm
Factors
K - Factor2
1.42
e - ISO Factor3
0.41
Y - ISO Factor4
1.46
Cg - Geometry Factor5
0.0612
