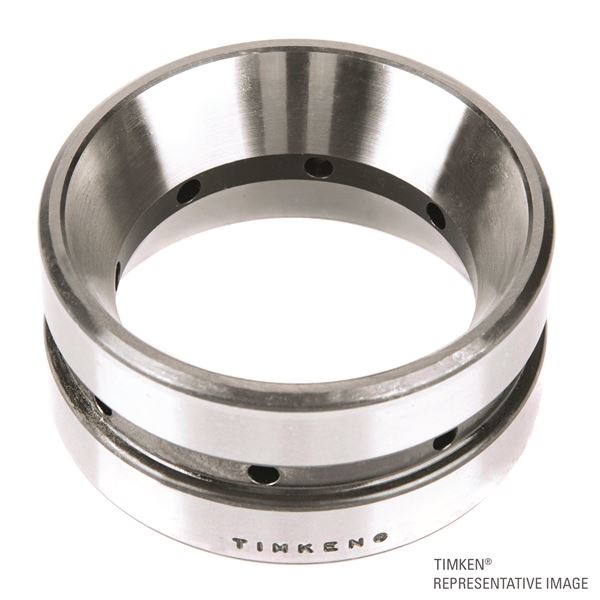

Timken LM778510D
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
LM778500
Cup Part Number
LM778510D
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
762.000 mm
C - Double Cup Width
169.863 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.5 mm
Da - Cup Frontface Backing Diameter
740.92 mm
Factors
K - Factor2
1.24
e - ISO Factor3
1.05
Y1 - ISO Factor4
0.64
Y2 - ISO Factor5
0.96
Cg - Geometry Factor6
0.294
