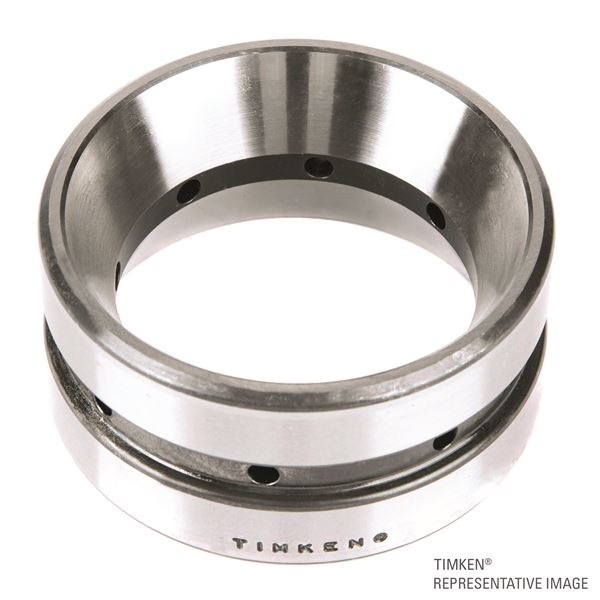

Timken LM869410CD
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
LM869400
Cup Part Number
LM869410CD
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
571.500 mm
C - Double Cup Width
111.125 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.5 mm
Da - Cup Frontface Backing Diameter
550.16 mm
Factors
K - Factor2
1.07
e - ISO Factor3
0.55
Y1 - ISO Factor4
1.24
Y2 - ISO Factor5
1.84
G1 - Heat Generation Factor (Roller-Raceway)
3720
G2 - Heat Generation Factor (Rib-Roller End)
491
Cg - Geometry Factor6
0.233
