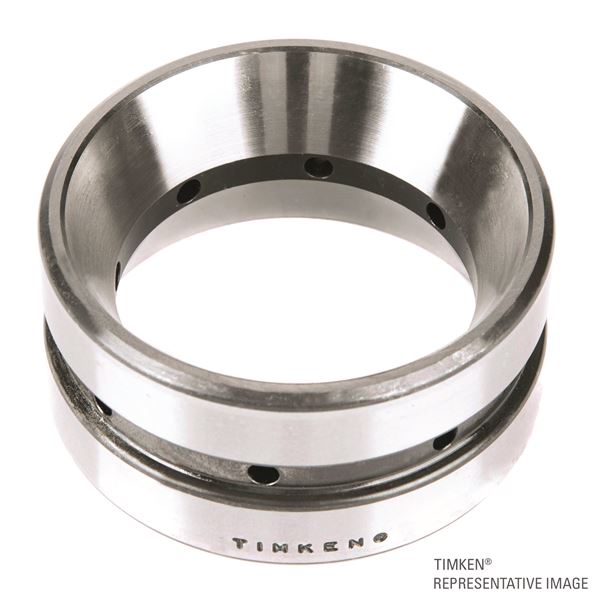

Timken LM961510XD
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
LM961500
Cup Part Number
LM961510XD
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
457.098 mm
C - Double Cup Width
104.775 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.5 mm
Da - Cup Frontface Backing Diameter
443.50 mm
Factors
K - Factor2
0.82
e - ISO Factor3
1.84
Y1 - ISO Factor4
0.37
Y2 - ISO Factor5
0.55
Cg - Geometry Factor6
0.215
