Timken M252349D – M252310
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
M252300
Cone Part Number
M252349D
Cup Part Number
M252310
Design Unit
Inch
Cage Material
Stamped Steel
Note
This part has a non-standard shoulder design. Please email customer CAD for shoulder details to ensure the proper design of mating components.
Related Assembly Number(s)
M252349D-90028

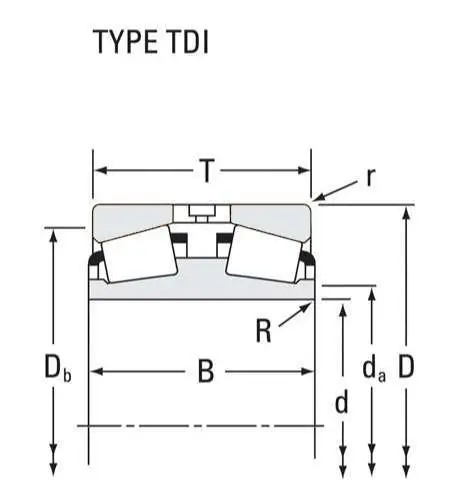

Dimensions
d - Bore
269.875 mm
D - Cup Outer Diameter
381.000 mm
B - Double Cone Width
136.525 mm
C - Cup Width
57.150 mm
T - Bearing Width across Cups
136.522 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.300 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
da - Cone Frontface Backing Diameter
290 mm
Db - Cup Backface Backing Diameter
356.11 mm
Ab - Cage-Cone Frontface Clearance
4.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
298000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
2000000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
519000 N
C6
170000 N
Factors
K - Factor7
1.76
e - ISO Factor8
0.33
Y1 - ISO Factor9
2.03
Y2 - ISO Factor10
3.02
Cg - Geometry Factor11
0.159
