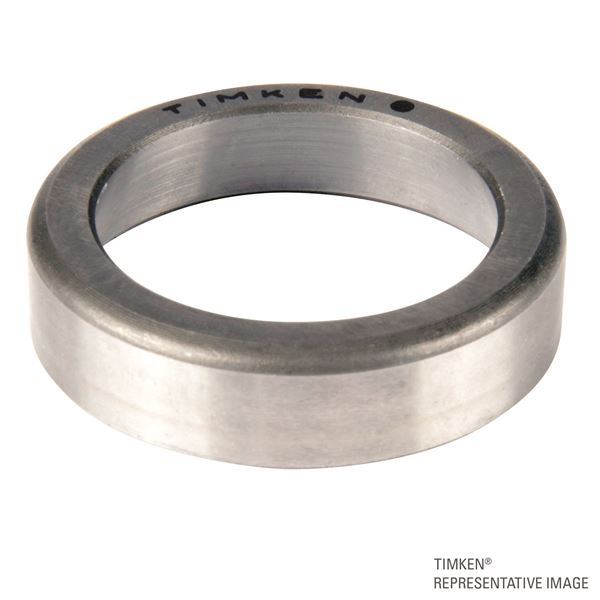

Timken M383210
Tapered Roller Bearings - Single Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
M383200
Cup Part Number
M383210
Design Units
Imperial

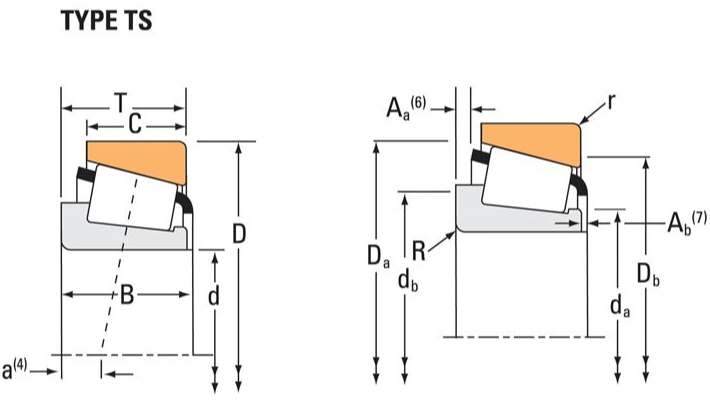

Dimensions
D - Cup Outer Diameter
1016 mm
C - Cup Width
142.875 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
6.4 mm
Db - Cup Backface Backing Diameter
947.90 mm
Factors
K - Factor2
1.66
e - ISO Factor3
0.74
