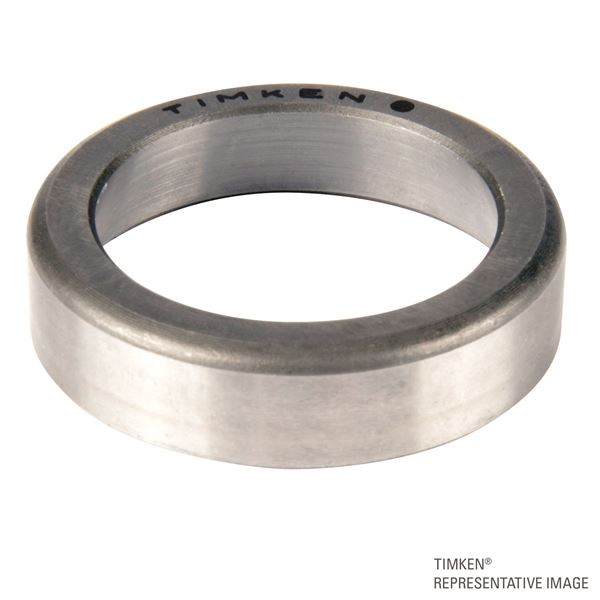

Timken M552810
Tapered Roller Bearings - Single Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
M552800
Cup Part Number
M552810
Design Units
Imperial

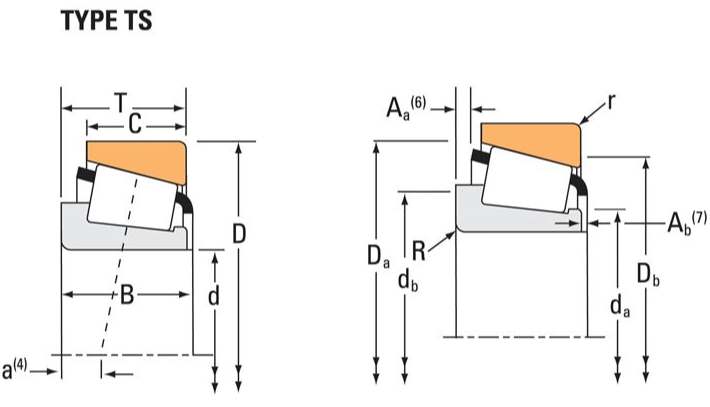

Dimensions
D - Cup Outer Diameter
392.100 mm
C - Cup Width
47.625 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Db - Cup Backface Backing Diameter
366.00 mm
Factors
K - Factor2
1.48
e - ISO Factor3
0.85
