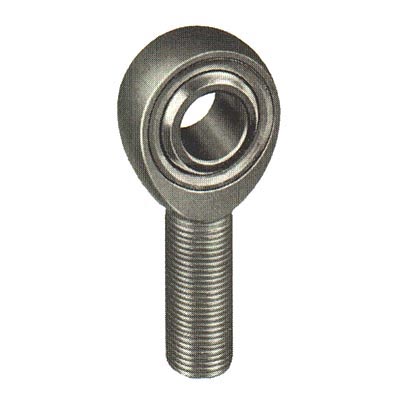

Timken MB-16F
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
MB-16F
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
1 1/4-12
Thread Class
UNF-3A-LH
a - Misalignment Angle Clevis Mounted
17 º
Ultimate Radial Static Load Capacity
43,541 lbs
Options
Stud
Type of Lubrication
Flush Fitting
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
