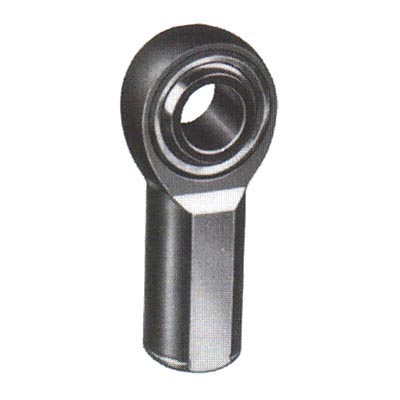

Timken MG-16F
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
MG-16F
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
1 1/4-12
Thread Class
UNF-2B-LH

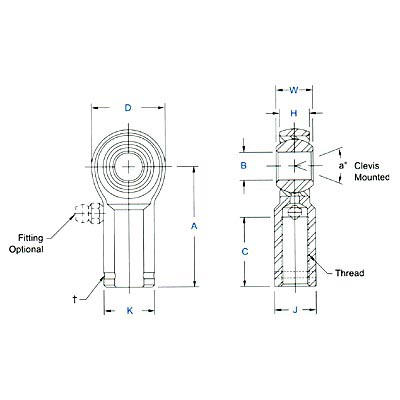

a - Misalignment Angle Clevis Mounted
17 º
Ultimate Radial Static Load Capacity
40,889 lbs
Options
Stud
Type of Lubrication
Flush Fitting
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
