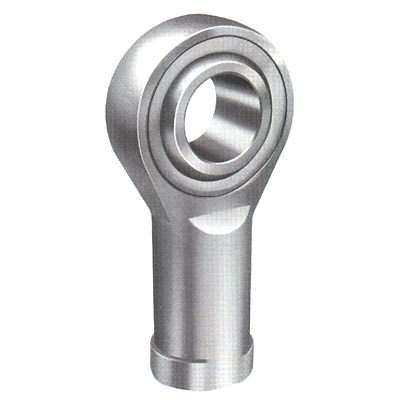

Timken MG-32T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
MG-32T
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
2-12
Thread Class
UN-2B-LH
a - Misalignment Angle Clevis Mounted
7.50 º
Ultimate Radial Static Load Capacity
163,634 lbs
Note

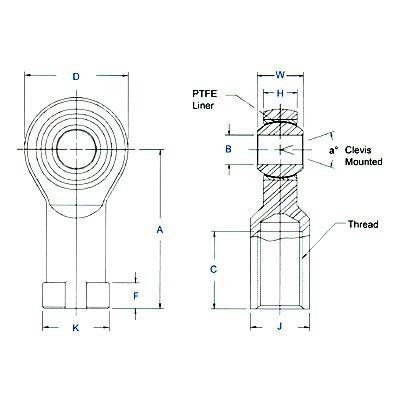

For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
