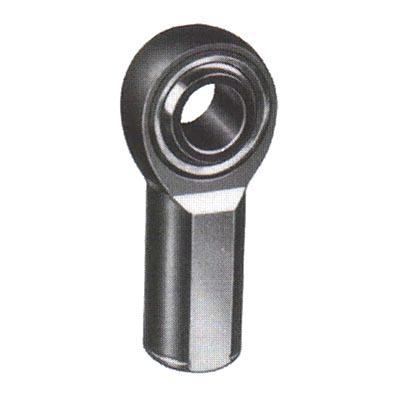

Timken MG-8
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
MG-8
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
1/2-20
Thread Class
UNF-2B-LH
a - Misalignment Angle Clevis Mounted
12 º
Ultimate Radial Static Load Capacity
6,660 lbs
Options
Stud
Type of Lubrication
None
Note

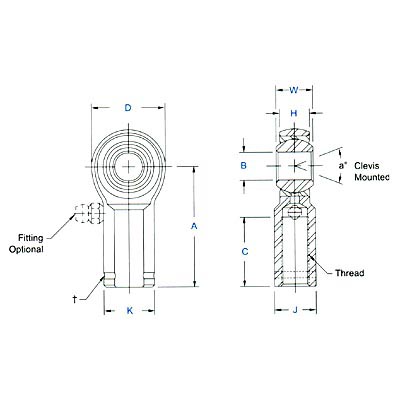

For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
