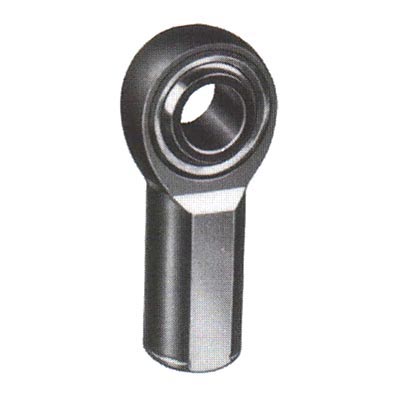

Timken MW-2
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
MW-2
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
6-32
Thread Class
UNC-2B
a - Misalignment Angle Clevis Mounted
16 º
Ultimate Radial Static Load Capacity
1,202 lbs
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
