Timken N 044/SK 20022/AN 36/W 36
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

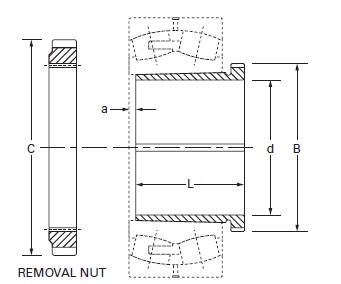

Specifications
Series
222K
Removal Nut O.D. C
279.53 mm
Bearing Number
22240K
Taper
1:12
Shaft Dimensions
Diameter d
180 mm
Tolerance1
-0.13 mm
Adapter Dimensions
Major Diameter
217.02 mm
L2
118 mm
a
5 mm
Accessory Numbers
Removal Nut
N 44
Sleeve
SK 20022
Locknut
AN 36
Lockwasher and Lockplates
W 36
