Timken NCF18/670VWEW73C6
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
670 mm
Static Load Rating C
3920000 N
Dynamic Load Rating C11
1740000 N
Dimension S2
7.50 mm
Geometry Factor C3
0.2940
Thermal Speed Ratings - Oil
190 rpm
Thermal Speed Ratings - Grease
160 rpm

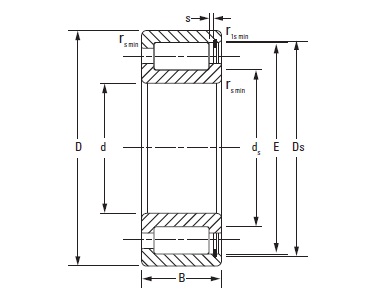

Bearing Dimensions
O.D. D
820 mm
Width B
69 mm
DUR/DOR F/E
782.3 mm
Mounting Data
Chamfer r
4 mm
Chamfer r4
4 mm
Backing Shaft Diameter d
710.3 mm
Backing Housing Diameter D
783.8 mm
