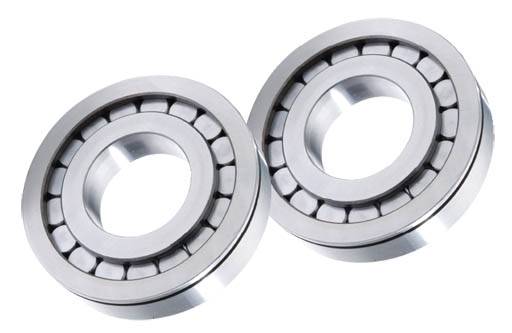

Timken NCF18/800AVWEW73C7
Cylindrical Roller Radial Bearings - Full Complement
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
800 mm
Static Load Rating C
4930000 N
Dynamic Load Rating C11
2150000 N
Dimension S2
9.00 mm
Geometry Factor C3
0.3390
Thermal Speed Ratings - Oil
150 rpm
Thermal Speed Ratings - Grease
130 rpm

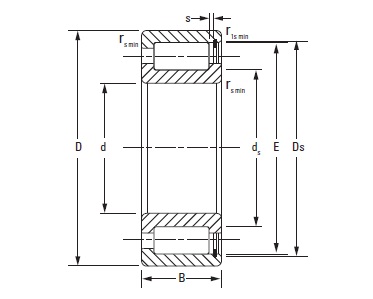

Bearing Dimensions
O.D. D
980 mm
Width B
82 mm
DUR/DOR F/E
935 mm
Mounting Data
Chamfer r
5 mm
Chamfer r4
5 mm
Backing Shaft Diameter d
845 mm
Backing Housing Diameter D
937 mm
