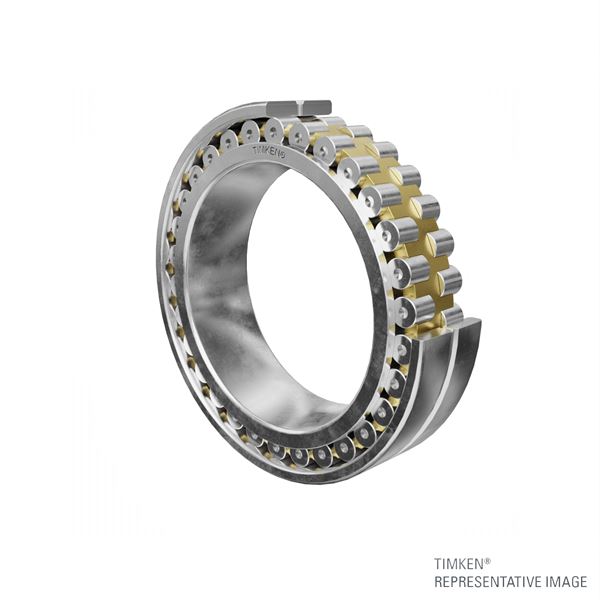

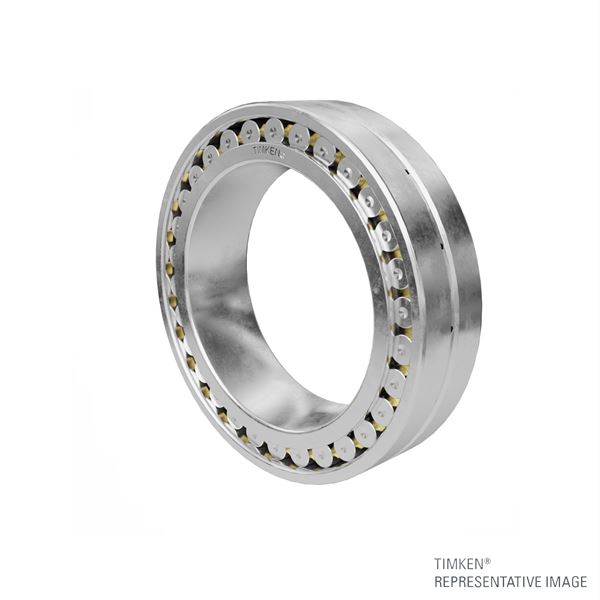

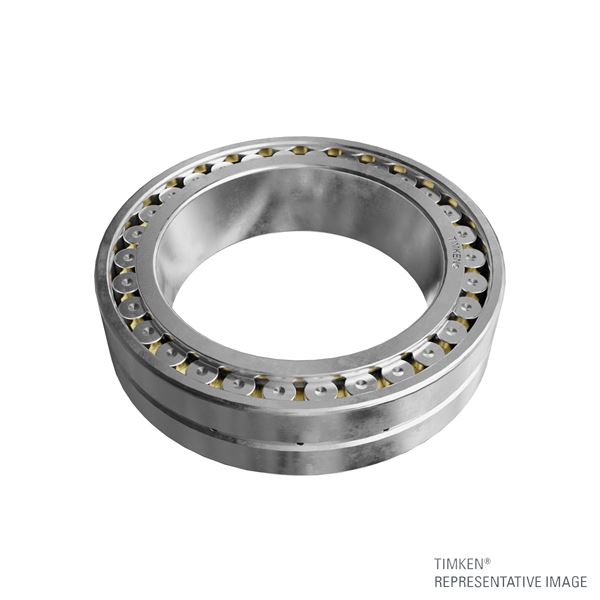

Timken NNU40/500MAW33
Cylindrical Roller Radial Bearings - Two-Row
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
500 mm
Static Load Rating C
10560000 N
Dynamic Load Rating C1
5550000 N
Geometry Factor C2
0.3220
Thermal Speed Ratings - Oil
330 rpm
Thermal Speed Ratings - Grease
310 rpm

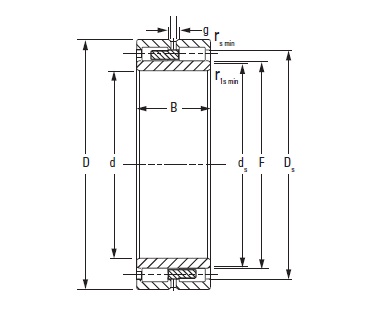

Bearing Dimensions
O.D. D
720 mm
Width B
218 mm
DUR/DOR F/E
553 mm
Mounting Data
Chamfer r
6 mm
Chamfer r3
6 mm
Backing Shaft Diameter d
544 mm
Backing Housing Diameter D
681 mm
Lubrication Data
Lubrication Groove g
16.0 mm
Lubrication Hole Diameter h
7.5 mm
Number of Lubrication Holes
12
Dimension S4
7.70 mm
