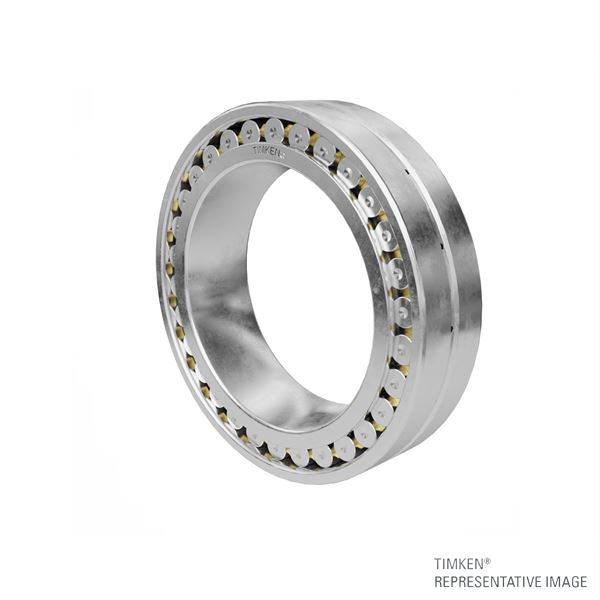

Timken NNU4068MAW33
Cylindrical Roller Radial Bearings - Two-Row
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
340.000 mm
Static Load Rating C
5130000 N
Dynamic Load Rating C1
2980000 N
Geometry Factor C2
0.2380
Thermal Speed Ratings - Oil
610 rpm
Thermal Speed Ratings - Grease
560 rpm
Bearing Dimensions
O.D. D
520 mm
Width B
180 mm
DUR/DOR F/E
385 mm
Mounting Data
Chamfer r
5 mm
Chamfer r3
5 mm
Backing Shaft Diameter d
380 mm
Backing Housing Diameter D
487 mm
Lubrication Data
Lubrication Groove g
19.3 mm
Lubrication Hole Diameter h
9.5 mm
Number of Lubrication Holes
10
Dimension S4
8.90 mm
