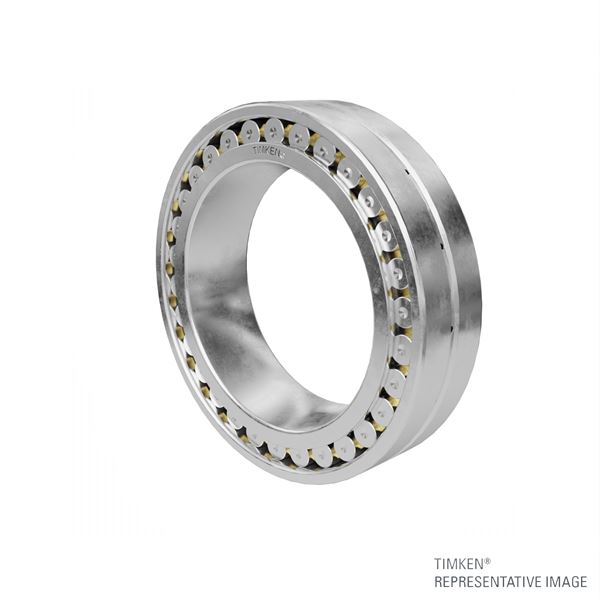

Timken NNU4084MAW33
Cylindrical Roller Radial Bearings - Two-Row
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
420 mm
Static Load Rating C
7600000 N
Dynamic Load Rating C1
4070000 N
Geometry Factor C2
0.2820
Thermal Speed Ratings - Oil
430 rpm
Thermal Speed Ratings - Grease
400 rpm
Bearing Dimensions
O.D. D
620 mm
Width B
200 mm
DUR/DOR F/E
469 mm
Mounting Data
Chamfer r
5 mm
Chamfer r3
5 mm
Backing Shaft Diameter d
459 mm
Backing Housing Diameter D
577 mm
Lubrication Data
Lubrication Groove g
19.3 mm
Lubrication Hole Diameter h
9.5 mm
Number of Lubrication Holes
10
Dimension S4
8.40 mm
