Timken NNU49/500MAW33C3
Cylindrical Roller Radial Bearings - Two-Row
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore d
500 mm
Static Load Rating C
6280000 N
Dynamic Load Rating C1
2690000 N
Geometry Factor C2
0.3060
Thermal Speed Ratings - Oil
420 rpm
Thermal Speed Ratings - Grease
380 rpm

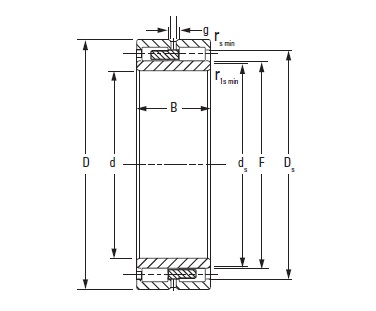

Bearing Dimensions
O.D. D
670 mm
Width B
170 mm
DUR/DOR F/E
554 mm
Mounting Data
Chamfer r
5 mm
Chamfer r3
5 mm
Backing Shaft Diameter d
543 mm
Backing Housing Diameter D
626 mm
Lubrication Data
Lubrication Groove g
19.3 mm
Lubrication Hole Diameter h
9.5 mm
Number of Lubrication Holes
12
Dimension S4
6.40 mm
