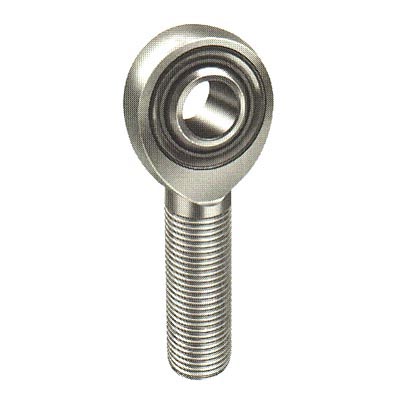

Timken PRXB-4T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
PRXB-4T
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
5/16-24
Thread Class
UNJF-3A-LH

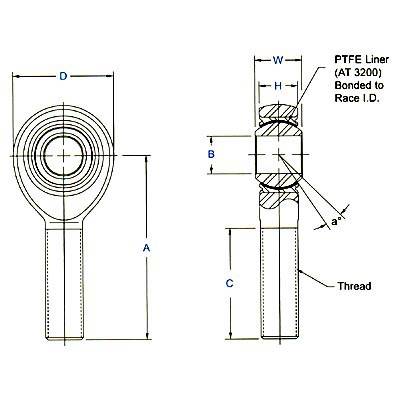

a - Misalignment Angle
6 º
Ultimate Radial Static Load Capacity
7,544 lbs
Approximate Brg. Weight [Lbs.]
0.07
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
