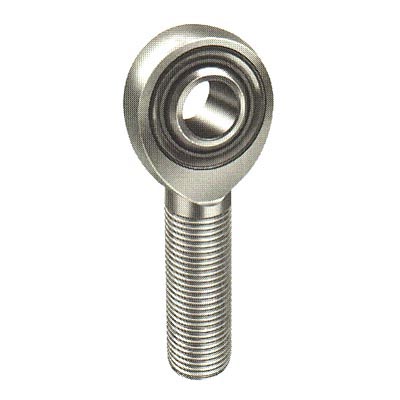

Timken PRXB-7T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
PRXB-7T
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
1/2-20
Thread Class
UNJF-3A-LH

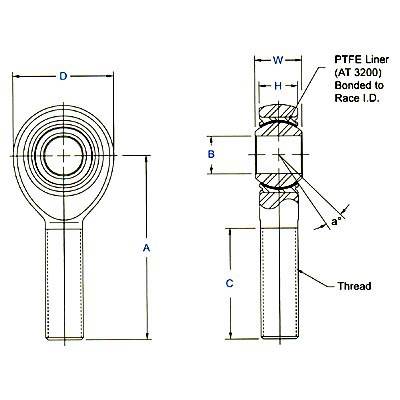

a - Misalignment Angle
10 º
Ultimate Radial Static Load Capacity
14,049 lbs
Approximate Brg. Weight [Lbs.]
0.19
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
