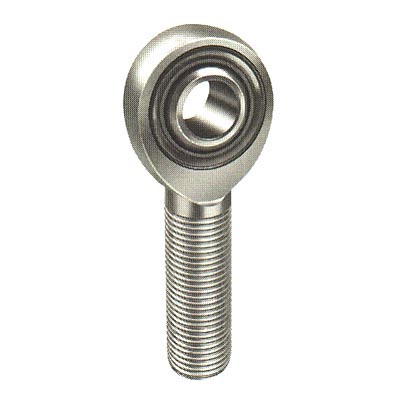

Timken PRXM-6T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
PRXM-6T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
7/16-20
Thread Class
UNJF-3A
a - Misalignment Angle
8 º
Ultimate Radial Static Load Capacity
10,946 lbs
Approximate Brg. Weight [Lbs.]
.15
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
