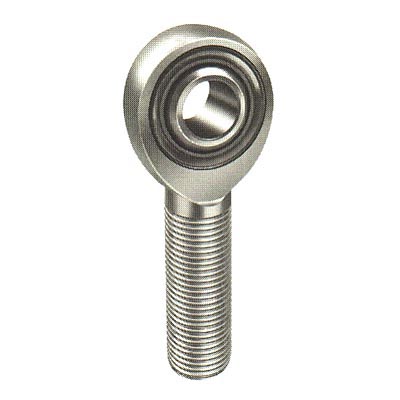

Timken PRXM-8T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
PRXM-8T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
5/8-18
Thread Class
UNJF-3A

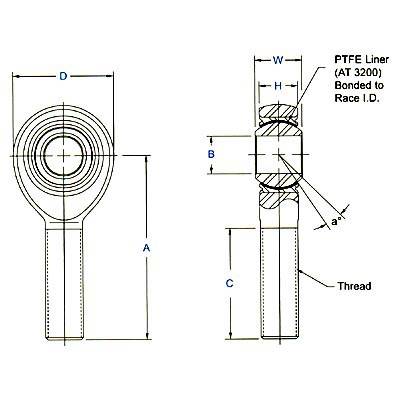

a - Misalignment Angle
9 º
Ultimate Radial Static Load Capacity
23,310 lbs
Approximate Brg. Weight [Lbs.]
.32
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
