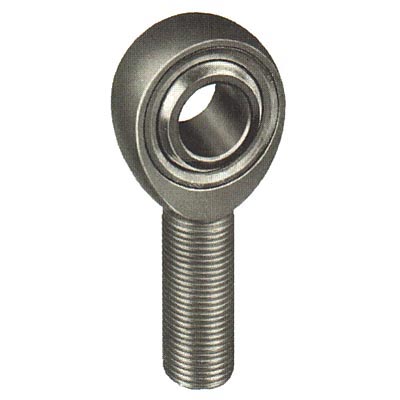

Timken RAB-6T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
RAB-6T
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
3/8-24
Thread Class
UNJF-3A-LH

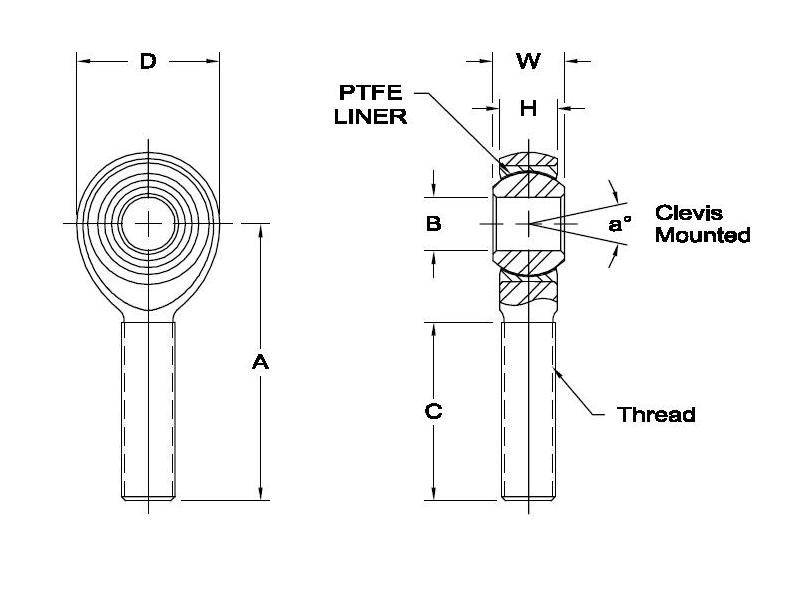

a - Misalignment Angle Clevis Mounted
12 º
Ultimate Radial Static Load Capacity
8,939 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
