Timken RN 30/SK 15023/AN 26/W 26

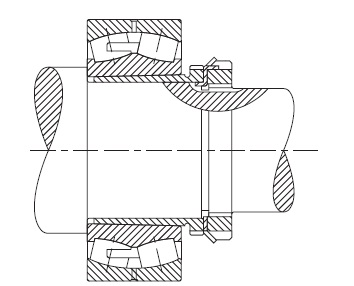

Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K

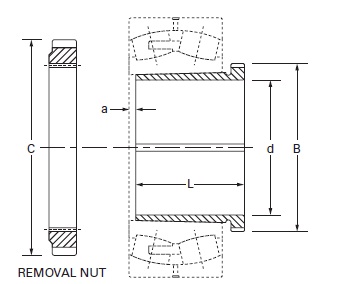

Removal Nut O.D. C
211.12 mm
Bearing Number
22330K
Taper
1:12
Shaft Dimensions
Diameter d
135 mm
Tolerance1
-0.13 mm
Adapter Dimensions
Major Diameter
163.04 mm
L2
135 mm
a
5 mm
Accessory Numbers
Removal Nut
RN 30
Sleeve
SK 15023
Locknut
AN 26
Lockwasher and Lockplates
W 26
