Timken RN 32/SK 16023/AN 28/W 28
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K

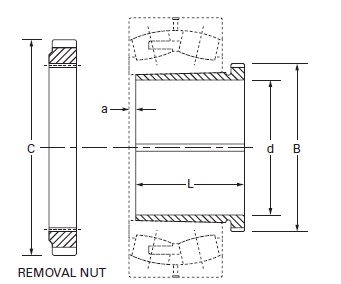

Removal Nut O.D. C
227.03 mm
Bearing Number
22332K
Taper
1:12
Shaft Dimensions
Diameter d
140 mm
Tolerance1
-0.13 mm
Adapter Dimensions
Major Diameter
173.76 mm
L2
140 mm
a
6 mm
Accessory Numbers
Removal Nut
RN 32
Sleeve
SK 16023
Locknut
AN 28
Lockwasher and Lockplates
W 28
