Timken RN 38/SK 19023/AN 34/W 34
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

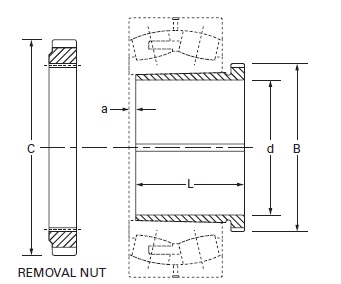

Specifications
Series
223K
Removal Nut O.D. C
271.48 mm
Bearing Number
22338K
Taper
1:12
Shaft Dimensions
Diameter d
170 mm
Tolerance1
-0.13 mm
Adapter Dimensions
Major Diameter
205.92 mm
L2
160 mm
a
7 mm
Accessory Numbers
Removal Nut
RN 38
Sleeve
SK 19023
Locknut
AN 34
Lockwasher and Lockplates
W 34
