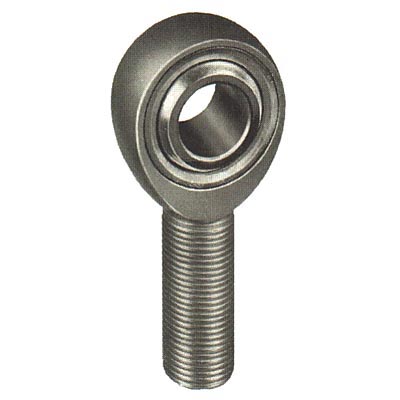

Timken RXAM-4T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
RXAM-4T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
5/16-24
Thread Class
UNJF-3A

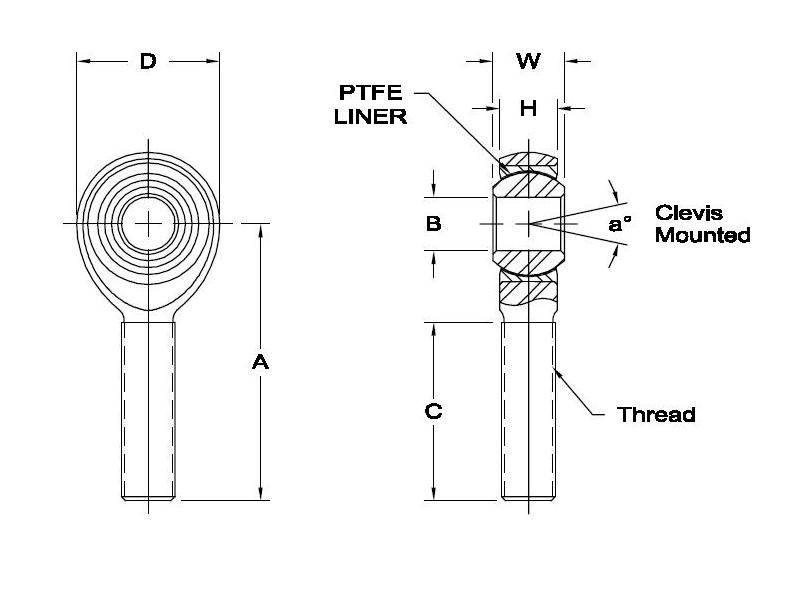

a - Misalignment Angle Clevis Mounted
13 º
Ultimate Radial Static Load Capacity
8,452 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
