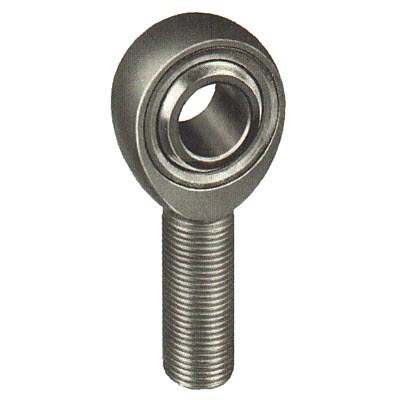

Timken SM-12T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
SM-12T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
3/4-16
Thread Class
UNF-3A

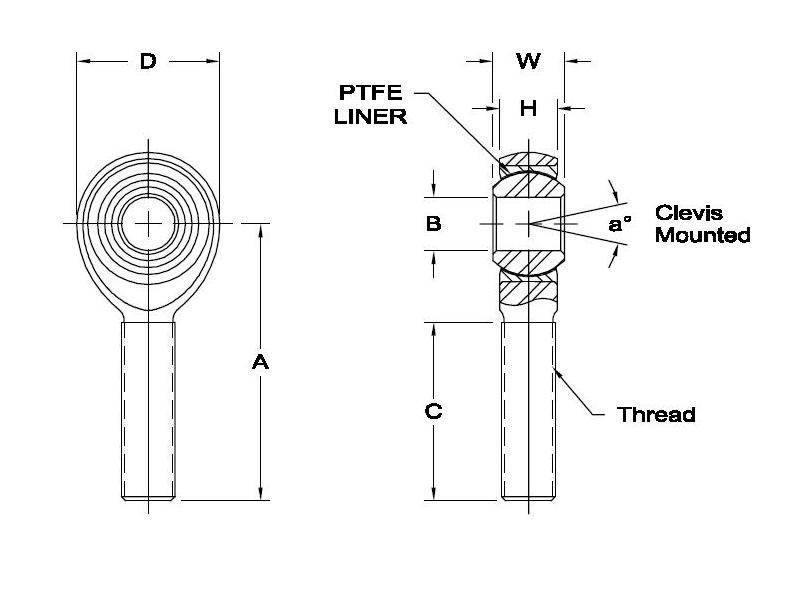

a - Misalignment Angle Clevis Mounted
14 º
Ultimate Radial Static Load Capacity
11,518 lbs
Options
Stud
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
