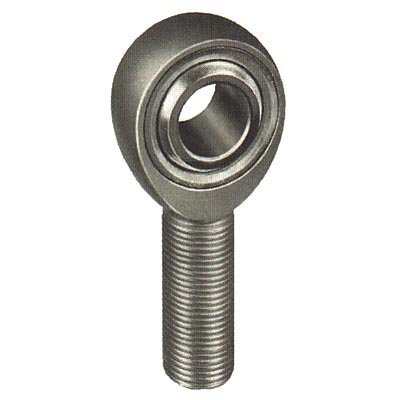

Timken SM-16ET
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
SM-16ET
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
1 1/4-12
Thread Class
UNF-3A

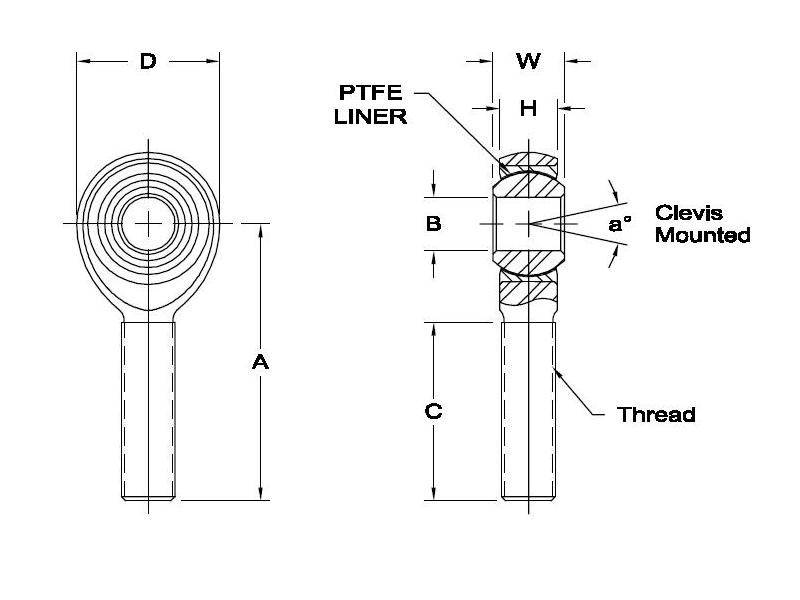

a - Misalignment Angle Clevis Mounted
17 º
Ultimate Radial Static Load Capacity
72,947 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
