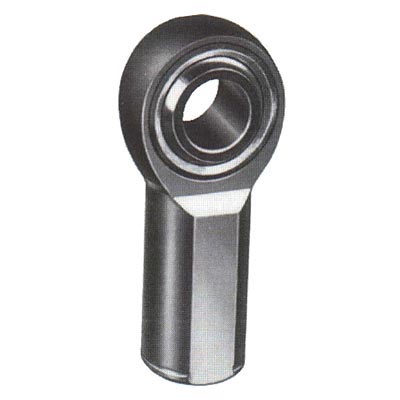

Timken SW-10E
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
SW-10E
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
5/8-18
Thread Class
UNF-3B

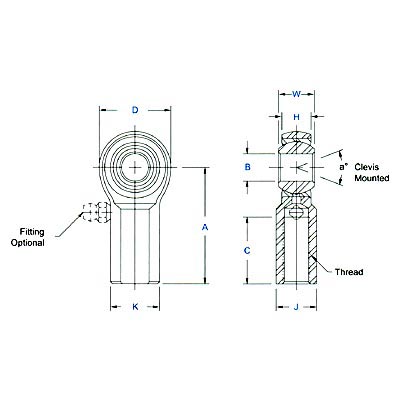

a - Misalignment Angle Clevis Mounted
16 º
Ultimate Radial Static Load Capacity
13,851 lbs
Options
Stud
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
