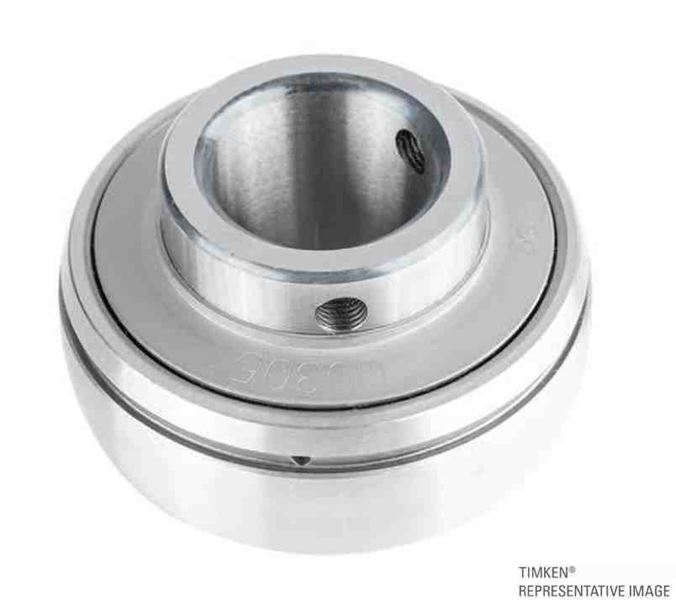

Timken UC208
UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Shaft Size d
40 mm
Locking Device
Set Screw Locking

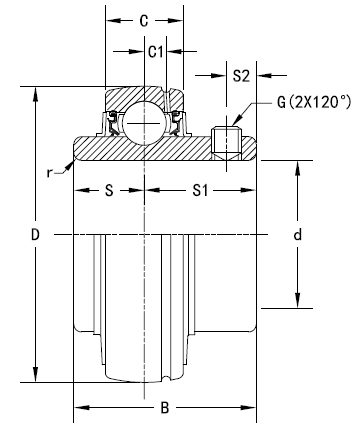

Dimensions
Outside Diameter D
80 mm
Outside Ring Width C
21 mm
Radius r
1.1 mm
Groove Position C1
5.9 mm
Center of Bearing from End S
19 mm
Dimension S1
30.2 mm
Set Screw Distance S2
8 mm
Set Screw Size
M8×1
Number of Set Screws
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
