Timken UC217-52
UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Locking Device
Set Screw Locking

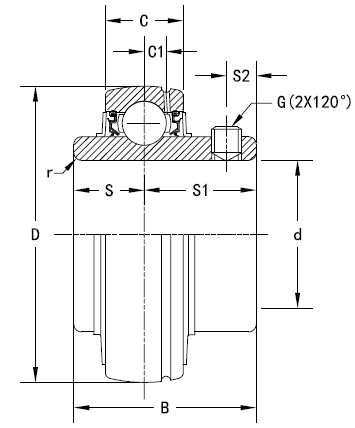

Dimensions
Outside Diameter D
150 mm
Outside Ring Width C
35 mm
Radius r
2 mm
Groove Position C1
9.8 mm
Center of Bearing from End S
34.1 mm
Dimension S1
51.6 mm
Set Screw Distance S2
14 mm
Set Screw Size
1/2-20UNF
Number of Set Screws
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
61900 N
Dynamic Load Rating
84000 N
