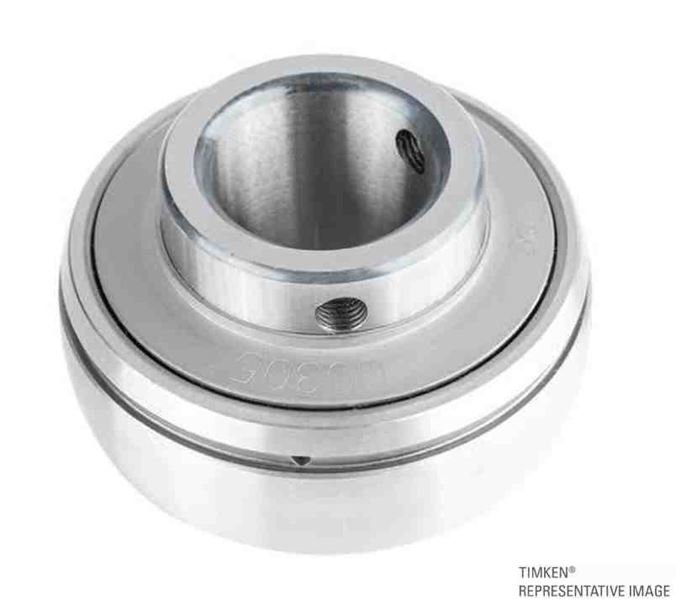

Timken UC211-35
UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Locking Device
Set Screw Locking

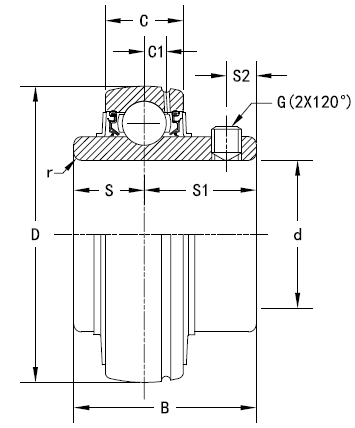

Dimensions
Outside Diameter D
100 mm
Outside Ring Width C
25 mm
Radius r
1.5 mm
Groove Position C1
7 mm
Center of Bearing from End S
22.2 mm
Dimension S1
33.4 mm
Set Screw Distance S2
9 mm
Set Screw Size
3/8-24UNF
Number of Set Screws
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
29400 N
Dynamic Load Rating
43400 N
