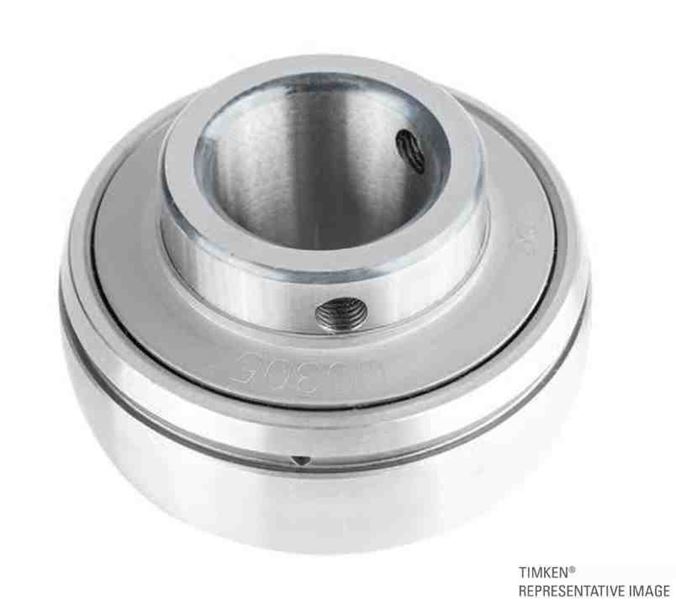

Timken UC212
UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Shaft Size d
60 mm
Locking Device
Set Screw Locking

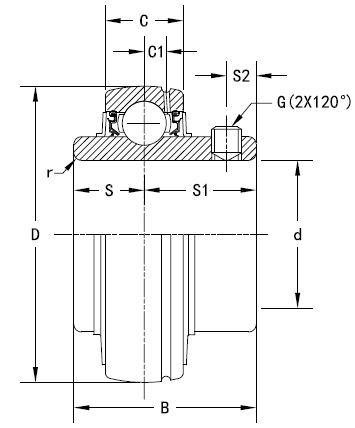

Dimensions
Outside Diameter D
110 mm
Outside Ring Width C
27 mm
Radius r
1.5 mm
Groove Position C1
7.4 mm
Center of Bearing from End S
25.4 mm
Dimension S1
39.7 mm
Set Screw Distance S2
10.5 mm
Set Screw Size
M10×1.25
Number of Set Screws
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
36200 N
Dynamic Load Rating
52400 N
