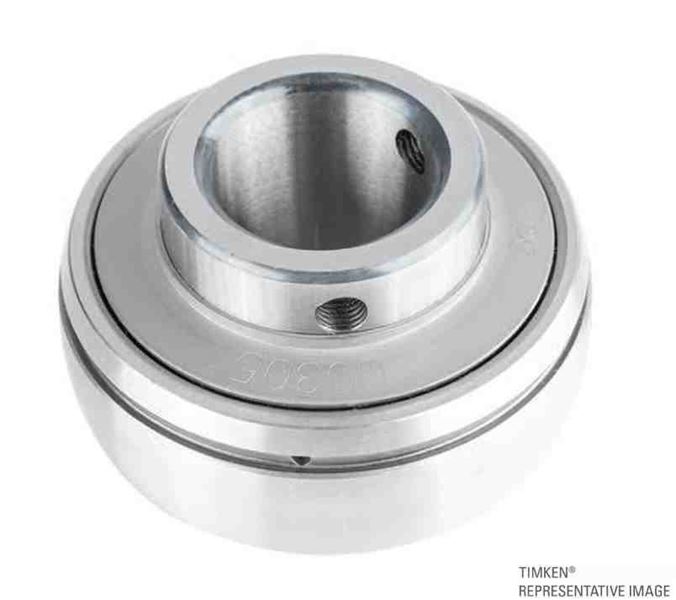

Timken UC216
UC 200 Wide Inner Ring Ball Bearings - Set Screw Locking
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Shaft Size d
80 mm
Locking Device
Set Screw Locking

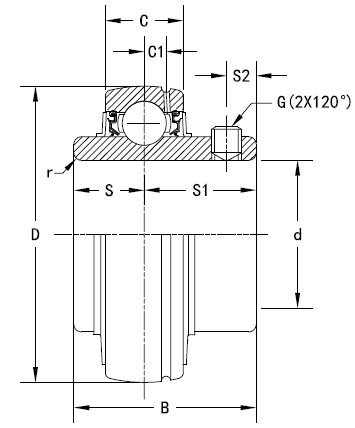

Dimensions
Outside Diameter D
140 mm
Outside Ring Width C
33 mm
Radius r
2 mm
Groove Position C1
8.9 mm
Center of Bearing from End S
33.3 mm
Dimension S1
49.3 mm
Set Screw Distance S2
14 mm
Set Screw Size
M12×1.5
Number of Set Screws
2
Angle between Set Screws
120 º
Basic Load Ratings
Static Load Rating
53000 N
Dynamic Load Rating
72700 N
