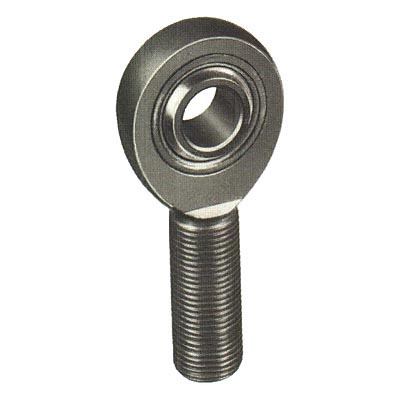

Timken XAB-10T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
XAB-10T
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
3/4-16
Thread Class
UNF-3A-LH

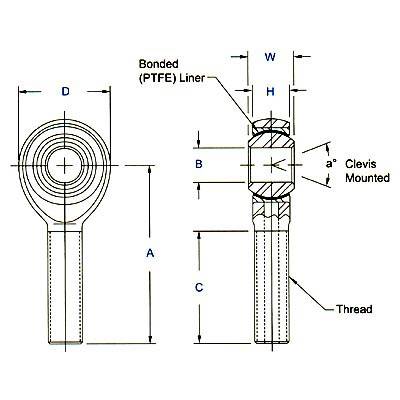

a - Misalignment Angle Clevis Mounted
13 º
Ultimate Radial Static Load Capacity
40,572 lbs
Type of Lubrication
PTFE liner
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
