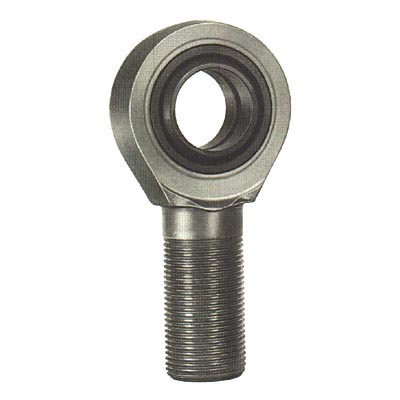

Timken XAB-20F-1
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
XAB-20F-1
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
1 1/2-12
Thread Class
UNF-3A-LH

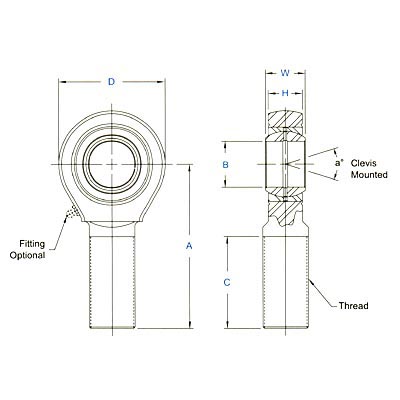

a - Misalignment Angle Clevis Mounted
7 º
Ultimate Radial Static Load Capacity
79,728 lbs
Type of Lubrication
Flush Fitting
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
