Timken YA015RR
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
YA..RR
Seal Type
Narrow Shroud

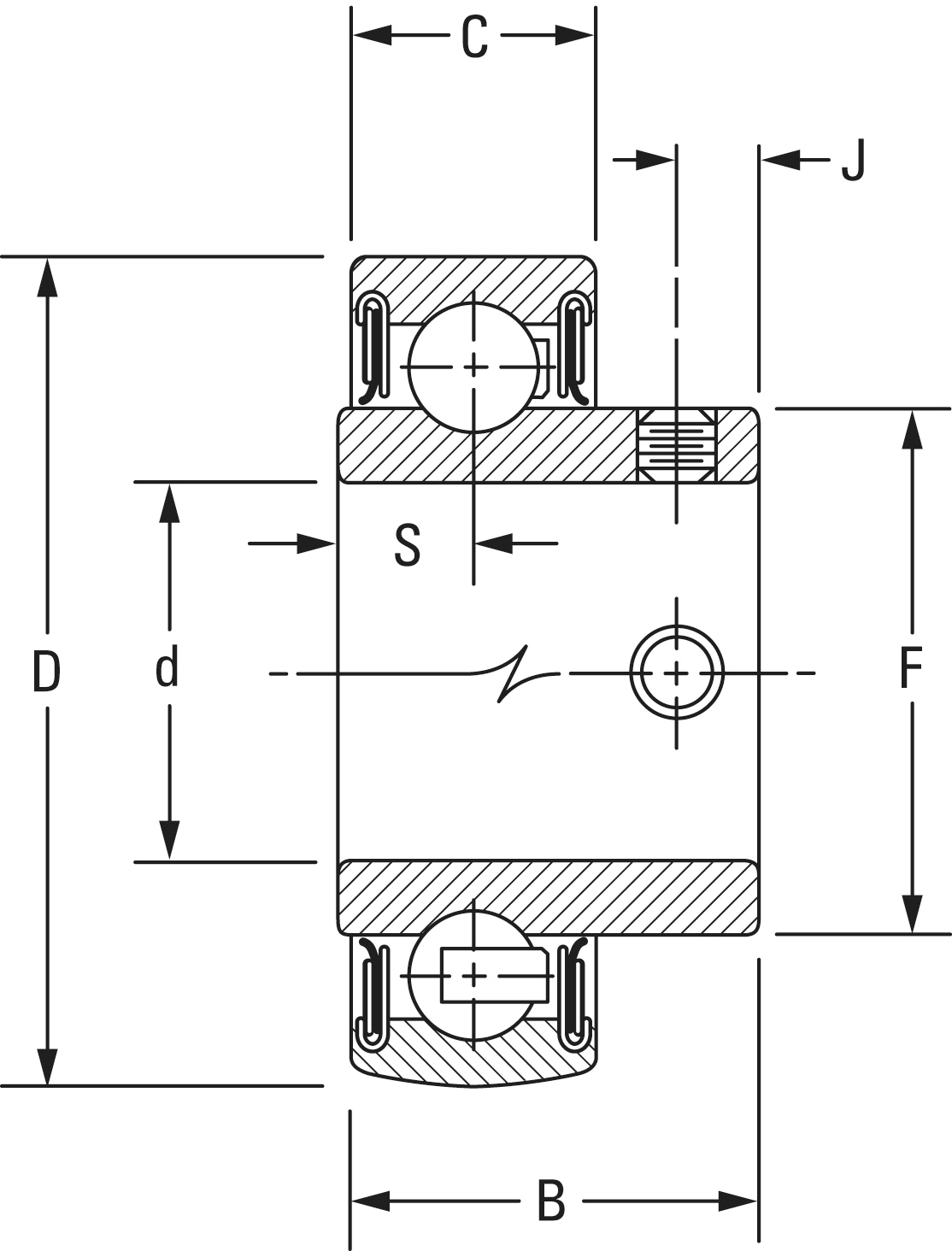

Dimensions
Outside Diameter D
52 mm
Inner Ring Width B
28.2 mm
Outside Ring Width C
15 mm
Radius r
0.6 mm
Center of Bearing from End S
8.84 mm
Dimension S1
19.36 mm
Dimension F
33.7 mm
Dimension J
6.35 mm
Set Screw Size
M6x1
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
7800 N
Dynamic Load Rating
15500 N
